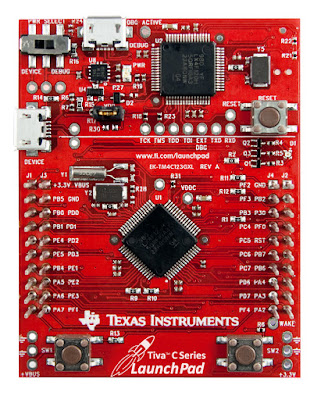

Source code can be downloaded here...
Google Drive Link
https://drive.google.com/file/d/0B02sL8YIqsjCQ05pMlQxQjJtVUE/view?usp=sharing
Total Workspace link
https://drive.google.com/file/d/0B02sL8YIqsjCZ2IwNTJ6bkdvQkU/view?usp=sharing
You can comment me , in case of any difficulties ...
//*****************************************************************************
#include <stdint.h>
#include <stdbool.h>
#include "inc/hw_memmap.h"
#include "driverlib/gpio.h"
#include "driverlib/sysctl.h"
#include "inc/hw_ints.h"
#include "inc/hw_types.h"
#include "driverlib/debug.h"
#include "driverlib/fpu.h"
#include "driverlib/gpio.h"
#include "driverlib/interrupt.h"
#include "driverlib/pin_map.h"
#include "driverlib/rom.h"
#include "driverlib/sysctl.h"
#include "driverlib/timer.h"
#include "driverlib/uart.h"
#include "utils/uartstdio.h"
#include "inc/hw_i2c.h"
#include "driverlib/systick.h"
#include "driverlib/i2c.h"
#include "driverlib/pwm.h"
#include "driverlib/ssi.h"
#include "driverlib/can.h"
#include "driverlib/adc.h"
#include <stdio.h>
#include <stdlib.h>
/************* Enable Tests ************/
//#define LED_TEST
//#define KEY_TEST
//#define GPIO_TEST //Pins PD0 PD1 PD2
//#define TIMER_TEST // Go to Startup_CCS.C & enable there
//#define UART_TEST // Use putty to send & read
//#define I2C_TEST // PB2 & PB3
//#define PWM_TEST //PB6 & PB7
//#define SPI_TEST //! - SSI0Clk - PA2 mcp2515 will attempt
//! - SSI0Fss - PA3
//! - SSI0Rx - PA4
//! - SSI0Tx - PA5
#define CAN_TEST //! - CAN0RX - PB4
//! - CAN0TX - PB5
//#define ADC_TEST
//*****************************************************************************
//
//! \addtogroup example_list
//! <h1>Blinky (blinky)</h1>
//!
//! A very simple example that blinks the on-board LED using direct register
//! access.
//
//*****************************************************************************
//*****************************************************************************
//
// Blink the on-board LED.
//
//*****************************************************************************
void mydelay(void)
{
volatile uint32_t ui32Loop;
for(ui32Loop = 0; ui32Loop < 290000; ui32Loop++)
{
}
}
#ifdef LED_TEST
void LED_Blink(void)
{
GPIOPinTypeGPIOOutput(GPIO_PORTF_BASE, GPIO_PIN_3|GPIO_PIN_2|GPIO_PIN_1);
//
// Loop forever.
//
while(1)
{
GPIOPinWrite(GPIO_PORTF_BASE, GPIO_PIN_3, 0);
GPIOPinWrite(GPIO_PORTF_BASE, GPIO_PIN_2, GPIO_PIN_2);
mydelay();
GPIOPinWrite(GPIO_PORTF_BASE, GPIO_PIN_2, 0);
GPIOPinWrite(GPIO_PORTF_BASE, GPIO_PIN_1, GPIO_PIN_1);
mydelay();
GPIOPinWrite(GPIO_PORTF_BASE, GPIO_PIN_1, 0);
GPIOPinWrite(GPIO_PORTF_BASE, GPIO_PIN_3, GPIO_PIN_3);
mydelay();
}
}
#endif
#ifdef KEY_TEST
void Key_Test(void)
{
GPIOPinTypeGPIOOutput(GPIO_PORTF_BASE, GPIO_PIN_3|GPIO_PIN_2); //led
GPIOPinTypeGPIOInput(GPIO_PORTF_BASE, GPIO_PIN_4);//sw1
GPIOPadConfigSet(GPIO_PORTF_BASE,GPIO_PIN_4,GPIO_STRENGTH_2MA,GPIO_PIN_TYPE_STD_WPU);
while(1)
{
if (GPIOPinRead(GPIO_PORTF_BASE,GPIO_PIN_4))
{
GPIOPinWrite(GPIO_PORTF_BASE, GPIO_PIN_3, GPIO_PIN_3);
}
else
{
GPIOPinWrite(GPIO_PORTF_BASE, GPIO_PIN_3, 0);
}
}
}
#endif
#ifdef GPIO_TEST
void GPIO_Test()
{
SysCtlPeripheralEnable(SYSCTL_PERIPH_GPIOD);
//
// Check if the peripheral access is enabled.
//
while(!SysCtlPeripheralReady(SYSCTL_PERIPH_GPIOD))
{
}
GPIOPinTypeGPIOOutput(GPIO_PORTD_BASE, GPIO_PIN_0|GPIO_PIN_1|GPIO_PIN_2);
while(1)
{
GPIOPinWrite(GPIO_PORTD_BASE, GPIO_PIN_0|GPIO_PIN_1|GPIO_PIN_2, GPIO_PIN_0|GPIO_PIN_1|GPIO_PIN_2);
mydelay();
GPIOPinWrite(GPIO_PORTD_BASE, GPIO_PIN_0|GPIO_PIN_1|GPIO_PIN_2,0);
mydelay();
}
}
#endif
#ifdef TIMER_TEST
void Timer_Test()
{
SysCtlPeripheralEnable(SYSCTL_PERIPH_GPIOF);
GPIOPinTypeGPIOOutput(GPIO_PORTF_BASE, GPIO_PIN_2 | GPIO_PIN_1);
// Enable the peripherals used by this example.
SysCtlPeripheralEnable(SYSCTL_PERIPH_TIMER0);
SysCtlPeripheralEnable(SYSCTL_PERIPH_TIMER1);
// Enable processor interrupts.
IntMasterEnable();
// Configure the two 32-bit periodic timers.
TimerConfigure(TIMER0_BASE, TIMER_CFG_PERIODIC);
TimerConfigure(TIMER1_BASE, TIMER_CFG_PERIODIC);
TimerLoadSet(TIMER0_BASE, TIMER_A, ROM_SysCtlClockGet());
TimerLoadSet(TIMER1_BASE, TIMER_A, ROM_SysCtlClockGet() / 10);
//TimerLoadSet(TIMER1_BASE, TIMER_A, 0x5fffff);
// Setup the interrupts for the timer timeouts.
IntEnable(INT_TIMER0A);
IntEnable(INT_TIMER1A);
TimerIntEnable(TIMER0_BASE, TIMER_TIMA_TIMEOUT);
TimerIntEnable(TIMER1_BASE, TIMER_TIMA_TIMEOUT);
// Enable the timers.
TimerEnable(TIMER0_BASE, TIMER_A);
TimerEnable(TIMER1_BASE, TIMER_A);
while(1)
{
}
}
// The interrupt handler for the first timer interrupt.
//
//*****************************************************************************
char bit1=0;
char bit2=0;
void
Timer0IntHandler(void)
{
TimerIntClear(TIMER0_BASE, TIMER_TIMA_TIMEOUT);
if(bit1)
{
GPIOPinWrite(GPIO_PORTF_BASE, GPIO_PIN_1, GPIO_PIN_1);
bit1=0;
}
else
{
GPIOPinWrite(GPIO_PORTF_BASE, GPIO_PIN_1, 0);
bit1=1;
}
IntMasterEnable();
}
void
Timer1IntHandler(void)
{
TimerIntClear(TIMER1_BASE, TIMER_TIMA_TIMEOUT);
if(bit2)
{
GPIOPinWrite(GPIO_PORTF_BASE, GPIO_PIN_2, GPIO_PIN_2);
bit2=0;
}
else
{
GPIOPinWrite(GPIO_PORTF_BASE, GPIO_PIN_2, 0);
bit2=1;
}
IntMasterEnable();
}
#endif
#ifdef UART_TEST
static uint32_t g_ui32Base = 0;
static const uint32_t g_ui32UARTBase[3] =
{
UART0_BASE, UART1_BASE, UART2_BASE
};
static const uint32_t g_ui32UARTPeriph[3] =
{
SYSCTL_PERIPH_UART0, SYSCTL_PERIPH_UART1, SYSCTL_PERIPH_UART2
};
void
UARTStdioConfig(uint32_t ui32PortNum, uint32_t ui32Baud, uint32_t ui32SrcClock)
{
//
// Check to make sure the UART peripheral is present.
//
if(!SysCtlPeripheralPresent(g_ui32UARTPeriph[ui32PortNum]))
{
return;
}
//
// Select the base address of the UART.
//
g_ui32Base = g_ui32UARTBase[ui32PortNum];
//
// Enable the UART peripheral for use.
//
SysCtlPeripheralEnable(g_ui32UARTPeriph[ui32PortNum]);
//
// Configure the UART for 115200, n, 8, 1
//
UARTConfigSetExpClk(g_ui32Base, ui32SrcClock, ui32Baud,
(UART_CONFIG_PAR_NONE | UART_CONFIG_STOP_ONE |
UART_CONFIG_WLEN_8));
// Enable the UART operation.
//
UARTEnable(g_ui32Base);
}
void
ConfigureUART(void)
{
//
// Enable the GPIO Peripheral used by the UART.
//
SysCtlPeripheralEnable(SYSCTL_PERIPH_GPIOA);
//
// Enable UART0
//
SysCtlPeripheralEnable(SYSCTL_PERIPH_UART0);
//
// Configure GPIO Pins for UART mode.
//
GPIOPinConfigure(GPIO_PA0_U0RX);
GPIOPinConfigure(GPIO_PA1_U0TX);
GPIOPinTypeUART(GPIO_PORTA_BASE, GPIO_PIN_0 | GPIO_PIN_1);
//
// Use the internal 16MHz oscillator as the UART clock source.
//
UARTClockSourceSet(UART0_BASE, UART_CLOCK_PIOSC);
//
// Initialize the UART for console I/O.
//
UARTStdioConfig(0, 115200, 16000000);
}
void UART_Test(void)
{
ConfigureUART();
//UARTprintf("Timers example\n");
UARTCharPut(g_ui32Base, 'V');
UARTCharPut(g_ui32Base, 'A');
UARTCharPut(g_ui32Base, 'R');
UARTCharPut(g_ui32Base, 'G');
UARTCharPut(g_ui32Base, 'H');
UARTCharPut(g_ui32Base, 'E');
UARTCharPut(g_ui32Base, 'S');
UARTCharPut(g_ui32Base, 'E');
while(1)
{
UARTCharPut(g_ui32Base,UARTCharGet(g_ui32Base));// echo char
}
}
#endif
#ifdef I2C_TEST
#define NUM_I2C_DATA 1
#define SLAVE_ADDRESS 0x3C
void I2C_Test(void )
{
uint32_t pui32DataTx[NUM_I2C_DATA];
uint32_t ui32Index;
SysCtlClockSet(SYSCTL_SYSDIV_1 | SYSCTL_USE_OSC | SYSCTL_OSC_MAIN |
SYSCTL_XTAL_16MHZ);
SysCtlPeripheralEnable(SYSCTL_PERIPH_I2C0);
SysCtlPeripheralEnable(SYSCTL_PERIPH_GPIOB);
GPIOPinConfigure(GPIO_PB2_I2C0SCL);
GPIOPinConfigure(GPIO_PB3_I2C0SDA);
GPIOPinTypeI2CSCL(GPIO_PORTB_BASE, GPIO_PIN_2);
GPIOPinTypeI2C(GPIO_PORTB_BASE, GPIO_PIN_3);
GPIOPadConfigSet(GPIO_PORTB_BASE, GPIO_PIN_2, GPIO_STRENGTH_2MA,GPIO_PIN_TYPE_STD_WPU); //Configure PUR for PB2
GPIOPadConfigSet(GPIO_PORTB_BASE, GPIO_PIN_3, GPIO_STRENGTH_2MA,GPIO_PIN_TYPE_OD); //Configure OD for PB3
GPIODirModeSet(GPIO_PORTB_BASE, GPIO_PIN_2|GPIO_PIN_3, GPIO_DIR_MODE_HW); //Set direction by HW for PB2 and PB3
I2CMasterInitExpClk(I2C0_BASE,SysCtlClockGet(),true); //Set System clock and normal (100 kbps) transfer rate for I2C_0
I2CMasterSlaveAddrSet(I2C0_BASE, SLAVE_ADDRESS, false);
pui32DataTx[0] = 'I';
pui32DataTx[1] = '2';
pui32DataTx[2] = 'C';
// ui32Index=0;
for(ui32Index = 0; ui32Index < NUM_I2C_DATA; ui32Index++)
{
I2CMasterDataPut(I2C0_BASE, pui32DataTx[ui32Index]);
I2CMasterControl(I2C0_BASE, I2C_MASTER_CMD_SINGLE_SEND);
}
while(1)
{
;
}
}
#endif
#ifdef PWM_TEST
void PWM_Test(void)
{
SysCtlClockSet(SYSCTL_SYSDIV_1 | SYSCTL_USE_OSC | SYSCTL_OSC_MAIN |
SYSCTL_XTAL_16MHZ);
SysCtlPWMClockSet(SYSCTL_PWMDIV_1);
SysCtlPeripheralEnable(SYSCTL_PERIPH_PWM0);
SysCtlPeripheralEnable(SYSCTL_PERIPH_GPIOB);
GPIOPinConfigure(GPIO_PB6_M0PWM0);
GPIOPinConfigure(GPIO_PB7_M0PWM1);
GPIOPinTypePWM(GPIO_PORTB_BASE, GPIO_PIN_6);
GPIOPinTypePWM(GPIO_PORTB_BASE, GPIO_PIN_7);
PWMGenConfigure(PWM0_BASE, PWM_GEN_0, PWM_GEN_MODE_UP_DOWN |
PWM_GEN_MODE_NO_SYNC);
PWMGenPeriodSet(PWM0_BASE, PWM_GEN_0, 64000);
PWMPulseWidthSet(PWM0_BASE, PWM_OUT_0,
PWMGenPeriodGet(PWM0_BASE, PWM_GEN_0) / 4);
PWMPulseWidthSet(PWM0_BASE, PWM_OUT_1,
1000);
// PWMDeadBandEnable(PWM0_BASE, PWM_GEN_0, 160, 160);
PWMOutputState(PWM0_BASE, PWM_OUT_1_BIT | PWM_OUT_0_BIT, true);
PWMGenEnable(PWM0_BASE, PWM_GEN_0);
while(1)
{
;
}
}
#endif
#ifdef SPI_TEST
#define NUM_SSI_DATA 3
void SPI_Test(void)
{
uint32_t pui32DataTx[NUM_SSI_DATA];
uint32_t pui32DataRx[NUM_SSI_DATA];
uint32_t ui32Index;
SysCtlClockSet(SYSCTL_SYSDIV_1 | SYSCTL_USE_OSC | SYSCTL_OSC_MAIN |
SYSCTL_XTAL_16MHZ);
SysCtlPeripheralEnable(SYSCTL_PERIPH_SSI0);
SysCtlPeripheralEnable(SYSCTL_PERIPH_GPIOA);
GPIOPinConfigure(GPIO_PA2_SSI0CLK);
GPIOPinConfigure(GPIO_PA3_SSI0FSS);
GPIOPinConfigure(GPIO_PA4_SSI0RX);
GPIOPinConfigure(GPIO_PA5_SSI0TX);
GPIOPinTypeSSI(GPIO_PORTA_BASE, GPIO_PIN_5 | GPIO_PIN_4 | GPIO_PIN_3 |
GPIO_PIN_2);
/* GPIOPinTypeGPIOOutput(GPIO_PORTA_BASE, GPIO_PA3_SSI0FSS);
GPIOPadConfigSet(GPIO_PORTA_BASE, GPIO_PA4_SSI0RX, GPIO_STRENGTH_4MA,
GPIO_PIN_TYPE_STD_WPU);
GPIOPadConfigSet(GPIO_PORTA_BASE, GPIO_PA2_SSI0CLK | GPIO_PA5_SSI0TX | GPIO_PA3_SSI0FSS,
GPIO_STRENGTH_4MA, GPIO_PIN_TYPE_STD);
*/
SSIConfigSetExpClk(SSI0_BASE, SysCtlClockGet(), SSI_FRF_TI,
SSI_MODE_MASTER, 1000000, 8);
SSIEnable(SSI0_BASE);
while(SSIDataGetNonBlocking(SSI0_BASE, &pui32DataRx[0]))
{
}
pui32DataTx[0] = 't';
pui32DataTx[1] = 'i';
pui32DataTx[2] = '!';
for(ui32Index = 0; ui32Index < NUM_SSI_DATA; ui32Index++)
{
SSIDataPut(SSI0_BASE, pui32DataTx[ui32Index]);
}
//SSIDataGet(SSI0_BASE, &pui32DataRx[ui32Index]);
while(1)
{
;
}
}
#endif
#ifdef CAN_TEST
void
CANIntHandler(void)
{
// uint32_t ui32Status;
// ui32Status = CANIntStatus(CAN0_BASE, CAN_INT_STS_CAUSE);
}
void CAN_Test(void)
{
tCANMsgObject sCANMessage;
uint32_t ui32MsgData;
uint8_t *pui8MsgData;
pui8MsgData = (uint8_t *)&ui32MsgData;
SysCtlClockSet(SYSCTL_SYSDIV_1 | SYSCTL_USE_OSC | SYSCTL_OSC_MAIN |
SYSCTL_XTAL_16MHZ);
SysCtlPeripheralEnable(SYSCTL_PERIPH_GPIOB);
GPIOPinConfigure(GPIO_PB4_CAN0RX);
GPIOPinConfigure(GPIO_PB5_CAN0TX);
GPIOPinTypeCAN(GPIO_PORTB_BASE, GPIO_PIN_4 | GPIO_PIN_5);
SysCtlPeripheralEnable(SYSCTL_PERIPH_CAN0);
CANInit(CAN0_BASE);
CANBitRateSet(CAN0_BASE, SysCtlClockGet(), 500000);
CANIntEnable(CAN0_BASE, CAN_INT_MASTER | CAN_INT_ERROR | CAN_INT_STATUS);
IntEnable(INT_CAN0);
CANEnable(CAN0_BASE);
ui32MsgData = 7;
sCANMessage.ui32MsgID = 0x1f;
sCANMessage.ui32MsgIDMask = 0;
sCANMessage.ui32Flags = MSG_OBJ_TX_INT_ENABLE;
sCANMessage.ui32MsgLen = sizeof(pui8MsgData);
sCANMessage.pui8MsgData = pui8MsgData;
while(1)
{
CANMessageSet(CAN0_BASE, 1, &sCANMessage, MSG_OBJ_TYPE_TX);
ui32MsgData++;
}
}
#endif
#ifdef ADC_TEST
void ADC_Test()
{
uint32_t pui32ADC0Value[1];
SysCtlClockSet(SYSCTL_SYSDIV_10 | SYSCTL_USE_PLL | SYSCTL_OSC_MAIN |
SYSCTL_XTAL_16MHZ);
SysCtlPeripheralEnable(SYSCTL_PERIPH_ADC0);
SysCtlPeripheralEnable(SYSCTL_PERIPH_GPIOE);
GPIOPinTypeADC(GPIO_PORTE_BASE, GPIO_PIN_7);
ADCSequenceConfigure(ADC0_BASE, 3, ADC_TRIGGER_PROCESSOR, 0);
ADCSequenceStepConfigure(ADC0_BASE, 3, 0, ADC_CTL_CH0 | ADC_CTL_IE |
ADC_CTL_END);
ADCSequenceEnable(ADC0_BASE, 3);
ADCIntClear(ADC0_BASE, 3);
while(1)
{
ADCProcessorTrigger(ADC0_BASE, 3);
while(!ADCIntStatus(ADC0_BASE, 3, false))
{
}
ADCIntClear(ADC0_BASE, 3);
ADCSequenceDataGet(ADC0_BASE, 3, pui32ADC0Value);
SysCtlDelay(SysCtlClockGet() / 12);
}
}
#endif
int
main(void)
{
//
// Enable the GPIO port that is used for the on-board LED.
//
SysCtlPeripheralEnable(SYSCTL_PERIPH_GPIOF);
//
// Check if the peripheral access is enabled.
//
while(!SysCtlPeripheralReady(SYSCTL_PERIPH_GPIOF))
{
}
#ifdef LED_TEST
LED_Blink();
#endif
#ifdef KEY_TEST
Key_Test();
#endif
#ifdef GPIO_TEST //PD0 ,PD1,PD2
GPIO_Test();
#endif
#ifdef TIMER_TEST
Timer_Test();
#endif
#ifdef UART_TEST
UART_Test();
#endif
#ifdef I2C_TEST
I2C_Test();
#endif
#ifdef PWM_TEST
PWM_Test();
#endif
#ifdef SPI_TEST
SPI_Test();
#endif
#ifdef CAN_TEST
CAN_Test();
#endif
#ifdef ADC_TEST
ADC_Test();
#endif
}
For interrupt add the routine in startup_ccs.c file ,,
